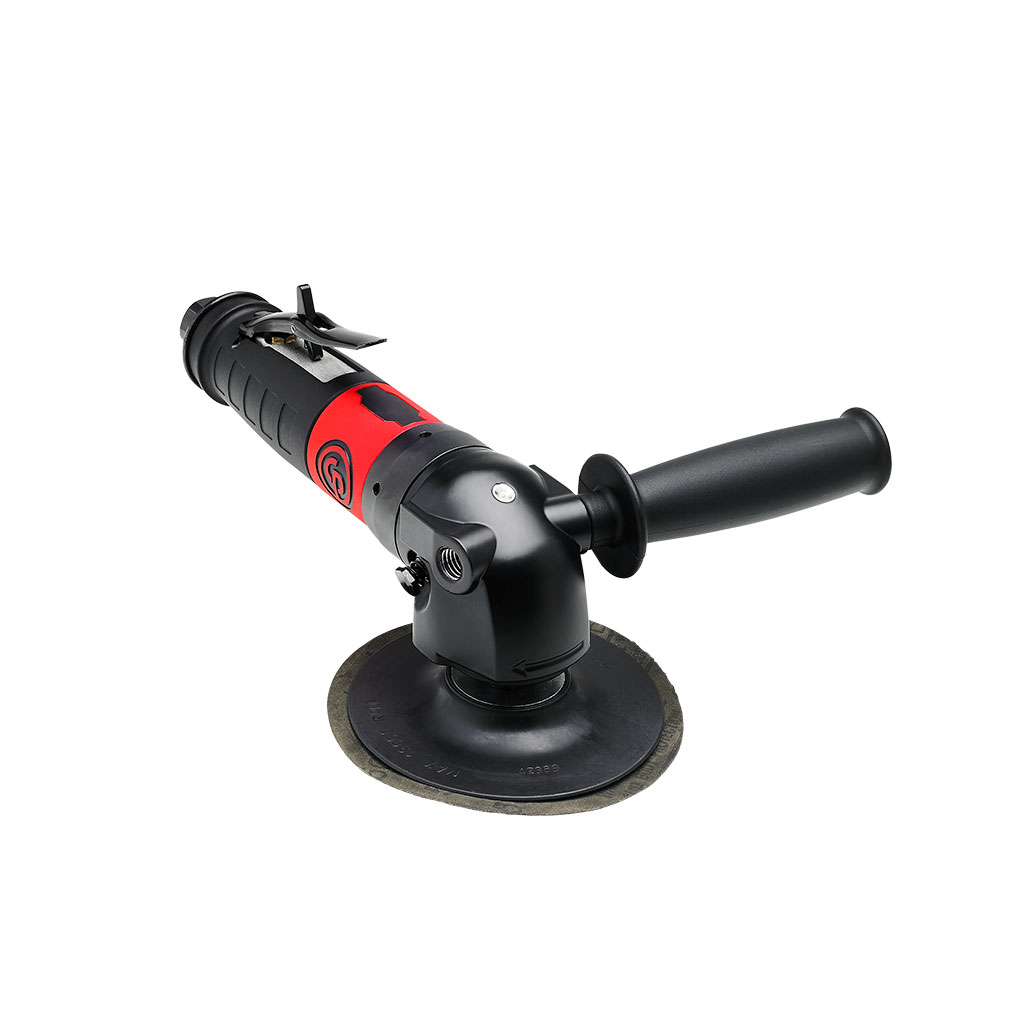

Chicago Pneumatic CP3550-120AB 5″ (127mm) Rotary Sander, 5/8″-11 Thread
£858.90 +VAT
NEW CP3550-120AB 5″ (127mm) Rotary Sander, 5/8″-11 Thread includes a durable bevel gear to maximise life between maintenance intervals; a spindle lock button to minimise time spent changing discs; a removable handle to enable use on one side or the other; a governed motor for consistent performance under load, and a rotating air inlet to keep the air line out of the way and eliminate the need for a swivel connector.
Description
Product Description of the Chicago Pneumatic CP3550-120AB 5" (127mm) Rotary Sander, 5/8"-11 Thread
BenefitsIndustrial angle sander
Industrial grade durability with up to a 1,000 hour maintenance interval
Superior torque for maximal productivity
Superior ergonomics
Features
1.5 hp (1,100 W) governed motor
Durable bevel gear
Spindle lock button
5" (125 mm) wheel capacity
5/8 - 11 spindle thread
12,000 rpm free speed
Streamlined safety lever
Parts Manuals for the Chicago Pneumatic CP3550-120AB 5" (127mm) Rotary Sander, 5/8"-11 Thread
Find the part number for your spare(s) in the parts manual below, and enter it in the search box at the top of the page to add it to your basket.
Parts Breakdown
Parts Breakdown for the Chicago Pneumatic CP3550-120AB 5" (127mm) Rotary Sander, 5/8"-11 Thread
Operator Manual
Operator Manual for the Chicago Pneumatic CP3550-120AB 5" (127mm) Rotary Sander, 5/8"-11 Thread
Vibration & Sound Readings for the Chicago Pneumatic CP3550-120AB 5" (127mm) Rotary Sander, 5/8"-11 Thread
Vibration readings for the Chicago Pneumatic CP3550-120AB 5" (127mm) Rotary Sander, 5/8"-11 Thread are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. RedBlackTools or Chicago Pneumatic cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.
| Vibration Level | Uncertainty | Vibration Test Method | |
| Current (3 Axis) | 5.2 m/s² | 3.4 m/s² | ISO-28927-3 |
| Noise Level | Sound Power |
| 84 db(A) | 95 db(A) |
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Chicago Pneumatic CP3550-120AB 5" (127mm) Rotary Sander, 5/8"-11 Thread will be sent to your email automatically.
Sound and Decibel Readings of the Chicago Pneumatic CP3550-120AB 5" (127mm) Rotary Sander, 5/8"-11 Thread
| Noise Level | Sound Power |
| 84 db(A) | 95 db(A) |
The Control of Noise at Work Regulations 2005 (Noise Regulations 2005) require employers to prevent or reduce risks to health and safety from exposure to noise at work.
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Chicago Pneumatic CP3550-120AB 5" (127mm) Rotary Sander, 5/8"-11 Thread will be sent to your email automatically.
Similar Tools to the Chicago Pneumatic CP3550-120AB 5" (127mm) Rotary Sander, 5/8"-11 Thread
[php function=19]Additional information
| Tool Type | Rotary Sander |
|---|---|
| Length | 249mm |
| Item Weight | 1.45 kg |
| Actual Air Consumption | 26 l/s [56 cfm] |
| Free Speed Air Consumption | 17 l/s [36 cfm] |
| Air Inlet Thread Size | 3/8" |
| Min. Hose Diameter | 13 mm [1/2"] |
| Sound Power | 95 db(A) |
| Vibration Level (Test Method) | 5.2 m/s² (ISO-28927-3) |
| Uncertainty (Test Method) | 3.4 m/s² (ISO-28927-3) |
| Spindle Thread | 5/8"-11 |
| Consumable Size | 5" (127mm) |
| Max. RPM/SPM | 12000 |
| Power | 1.5hp [1100 W] |
| Height Over Spindle | 94mm |
