Fein KBC 36 LB Electric Compact Machining Magnetic Core Drill Set 110V

Description

Product Description of the Fein KBC 36 LB Electric Compact Machining Magnetic Core Drill Set 110V

Compact magnetic core drill for up to 36 mm
KBC 36 MAGFORCE Machinery-Set 3/4 in Weldon (110V)
The smallest core drill in the world with forward and reverse running coupled with a large number of tapping accessories. Perfect for the construction of machines and machine tools.

Specifications:
Input: 1,200 W
Output: 680 W
Speed, full load: 130 - 610 rpm
Speed, no load: 130 - 660 rpm
Carbide core drill bit max. ?: 36 mm
HSS core drill max. ?: 36 mm
Core drill, drilling depth max.: 35 mm
Twist drill max. ?: 16 mm
Tapping: M 12
Countersinking max. ?: 32 mm
Core drill holder: 3/4 in Weldon
Width across corners: 40 mm
Height: 169 mm
Stroke: 46 mm
Height: 169 mm
Magnetic holding power: 10,000 N
Cable with plug: 3 m
Weight according to EPTA: 8.50 kg

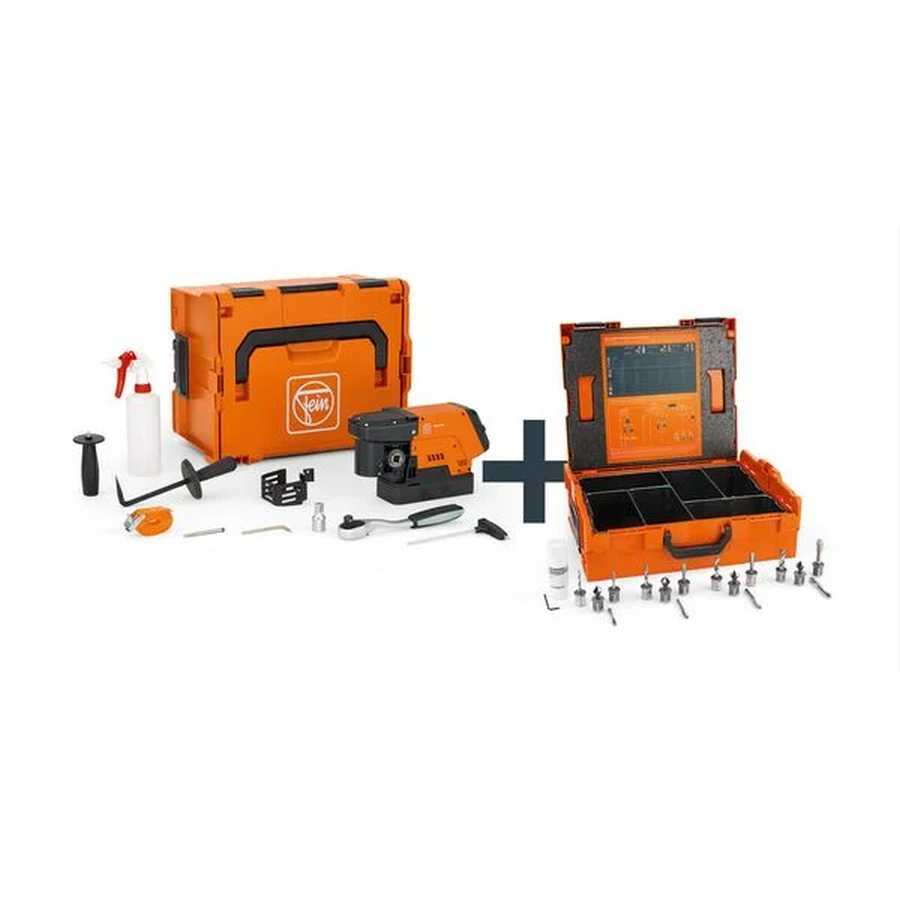

Price includes:
1 magnetic core drill
1 x 1/2? ratchet
1 x 1/2? socket wrench extension
1 x coolant pump
1 lashing strap
1 swarf hook
1 x 82 mm centring pin
1 contact guard
1 additional handle
1 x 5 mm hexagon socket wrench
1 x 5 mm hexagon socket wrench with T-handle
1 plastic tool case (L-BOXX 238)
Tapping drills (2 each of M6, M8, M10, M12 (DIN 352 / ISO 13))
HSS twist drills, 35 mm cutting depth (1 each of diameter 5.0 / 6.8 / 8.5 / 10.2 mm)
4 x HSS 90? countersink bits, diameter 16.5 mm
1 cutting paste
1 L-BOXX 136 for accessories
