Chicago Pneumatic CP7748TL-2 + SOCKET SET (Discontinued)

£0.00 +VAT

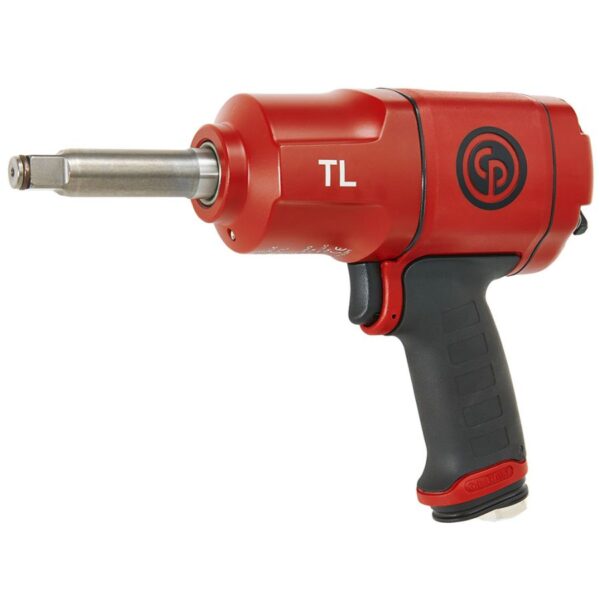

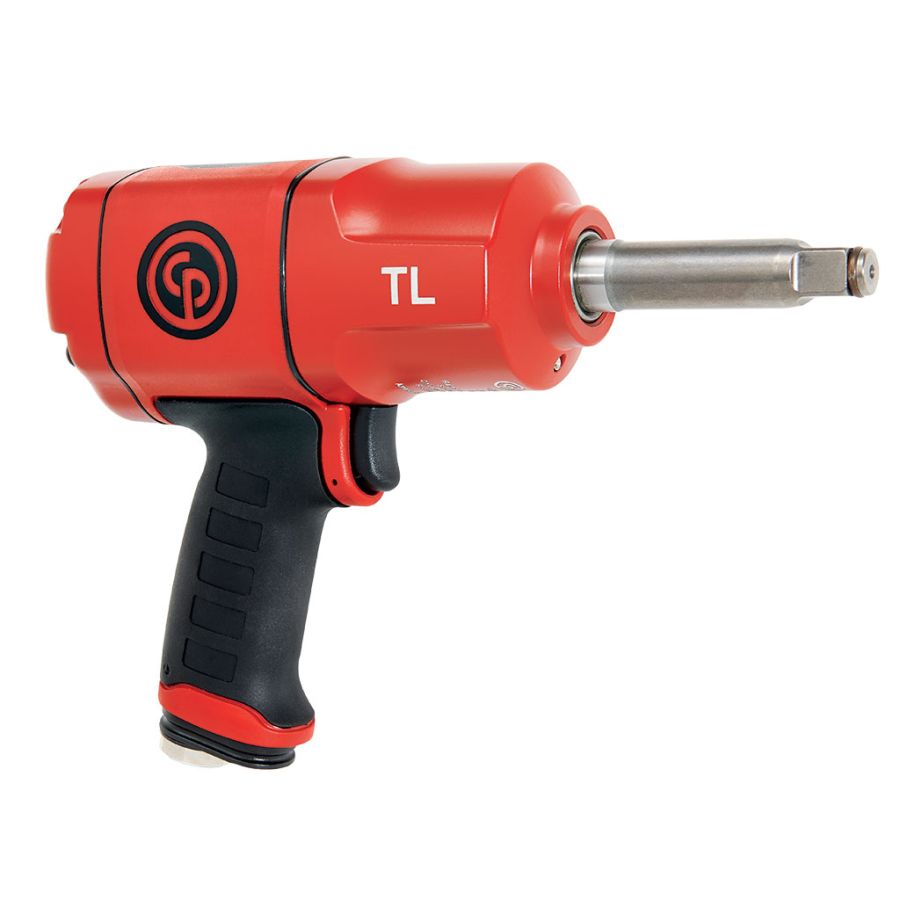

Chicago Pneumatic CP7748TL-2 + SOCKET SET

Out of stock

Description

Product Description of the Chicago Pneumatic CP7748TL-2 + SOCKET SET (Discontinued)

Powerful impact for General Maintenance
Maximize operator comfort due to the lightweight and balanced design
Energy savings thanks to low air consumption

3/4" composite impact wrench with 6" extended anvil
1,440 ft.lbs (1,950Nm) of maximum torque in reverse
Low consumption air motor at 31 cfm (14.7 l/s)
Insulating and lightweight composite handle
S2S easy forward reverse
Lightweight with a magnesium clutch housing
Universal & durable twin hammer mechanism
Full teasing developed trigger

Side to Center: 39 mm [1.53"]
Min. Hose Diameter: 13 mm [1/2"]
Box Dimensions: 410x260x105mm
Over Carton: 424x267x253mm
1200 blows per minute
Power/Weight Ratio: 520.8 Nm/kg [174 ft.lb/lb]

Parts Manuals for the Chicago Pneumatic CP7748TL-2 + SOCKET SET (Discontinued)

Find the part number for your spare(s) in the parts manual below, and enter it in the search box at the top of the page to add it to your basket.

Parts Breakdown

Parts Breakdown for the Chicago Pneumatic CP7748TL-2 + SOCKET SET (Discontinued)

Operator Manual

Operator Manual for the Chicago Pneumatic CP7748TL-2 + SOCKET SET (Discontinued)

Safety Instructions

Safety Instructions for the Chicago Pneumatic CP7748TL-2 + SOCKET SET (Discontinued)

Vibration & Sound Readings for the Chicago Pneumatic CP7748TL-2 + SOCKET SET (Discontinued)

Vibration readings for the Chicago Pneumatic CP7748TL-2 + SOCKET SET (Discontinued) are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. RedBlackTools or Chicago Pneumatic cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

  Vibration Level Uncertainty Vibration Test Method
Current (3 Axis) 4.8 m/s² 1.5 m/s² ISO-28927-2

Noise Level Sound Power
86 db(A) 97 db(A)

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Chicago Pneumatic CP7748TL-2 + SOCKET SET (Discontinued) will be sent to your email automatically.

  • This field is for validation purposes and should be left unchanged.

Additional information

Tool Type

Impact Wrench

Noise Level

86 db(A)

Power/Weight Ratio

520.8 Nm/kg [174 ft.lb/lb]

Blows per Minute

850

Clutch Type

Twin Hammer

Socket Retainer

Friction Ring

Uncertainty (Test Method)

1.5 m/s² (ISO-28927-2)

Vibration Level (Test Method)

4.8 m/s² (ISO-28927-2)

Sound Power

97 db(A)

Air Inlet Thread Size

1/4"

Handle Type

Pistol

Actual Air Consumption

10 l/s [21 cfm]

Side to Center

38 mm [1 1/2"]

Length

250mm

Item Weight

2.4 kg

Max. RPM/SPM

8200

Maximum Torque

1250 Nm

Working Torque Range

90 – 96 Nm

Square/Output Drive

1/2"

Average Air Consumption

2.5 l/s [5 cfm]
