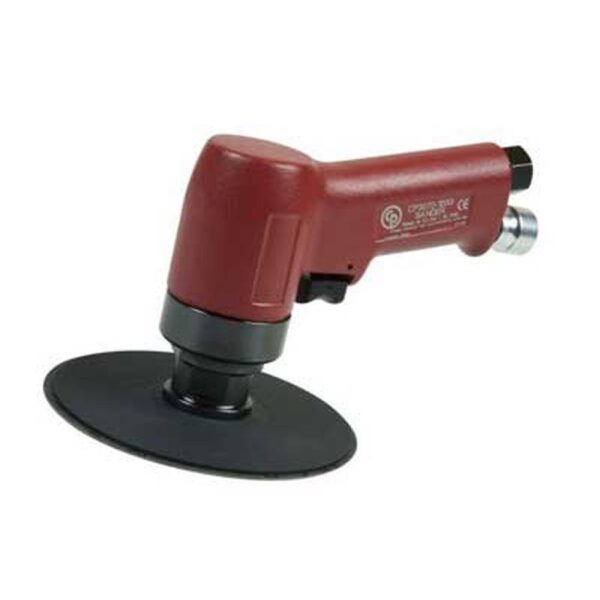

Chicago Pneumatic CP3070-120G Pistol Sander

MRP: £412.40

£444.08 +VAT

Chicago Pneumatic CP3070-120G Pistol Sander

Description

Product Description of the Chicago Pneumatic CP3070-120G Pistol Sander

Industrial pistol sander
High durability
Ergonomics - Compact & easy handling, ideal for limited space applications

5" (125 mm) sander
High power 0.5hp (375 W)
Free speed 12,000 rpm
Low noise
Low vibrations
Handle exhaust

Parts Manuals for the Chicago Pneumatic CP3070-120G Pistol Sander

Find the part number for your spare(s) in the parts manual below, and enter it in the search box at the top of the page to add it to your basket.

Parts Breakdown

Parts Breakdown for the Chicago Pneumatic CP3070-120G Pistol Sander

Operator Manual

Operator Manual for the Chicago Pneumatic CP3070-120G Pistol Sander

CE Certificate

CE Certificate for the Chicago Pneumatic CP3070-120G Pistol Sander

Safety Instructions

Safety Instructions for the Chicago Pneumatic CP3070-120G Pistol Sander

Vibration & Sound Readings for the Chicago Pneumatic CP3070-120G Pistol Sander

Vibration readings for the Chicago Pneumatic CP3070-120G Pistol Sander are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. RedBlackTools or Chicago Pneumatic cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

 Vibration LevelUncertaintyVibration Test Method
Current (3 Axis)Under 2.5 m/s²-ISO-8662-8

Noise LevelSound Power
84 db(A)95 db(A)

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Chicago Pneumatic CP3070-120G Pistol Sander will be sent to your email automatically.

  • This field is for validation purposes and should be left unchanged.

On-Site Tool Demonstration of the Chicago Pneumatic CP3070-120G Pistol Sander

Free On-Site UK Tool Demonstrations

Please complete the form below to arrange a tool demonstration for the Chicago Pneumatic CP3070-120G Pistol Sander or any of the Chicago Pneumatic range of tooling. Alternatively please call us on 01273 855119.

Book a Tool Demonstration

Additional information

Max. RPM/SPM

12000

Vibration Level (Test Method)

Under 2.5 m/s² (ISO-28927-3), Under 2.5 m/s² (ISO-8662-8)

Tool Type

Pistol Sander

Consumable Shape

Disc

Height Over Spindle

108mm

Consumable Size

5" (127mm)

Spindle Thread

3/8"-24

Power

0.5hp [373 W]

Average Air Consumption

5.3 l/s [11 cfm]

Sound Power

95 db(A)

Item Weight

1 kg

Noise Level

84 db(A)

Min. Hose Diameter

10 mm [3/8"]

Air Inlet Thread Size

1/4"

Free Speed Air Consumption

12 l/s [25 cfm]

Actual Air Consumption

10.5 l/s [22 cfm]

Length

175mm

GTIN

015451691684
