Chicago Pneumatic CP5080-4200H18 Belt Sander

£638.40 +VAT

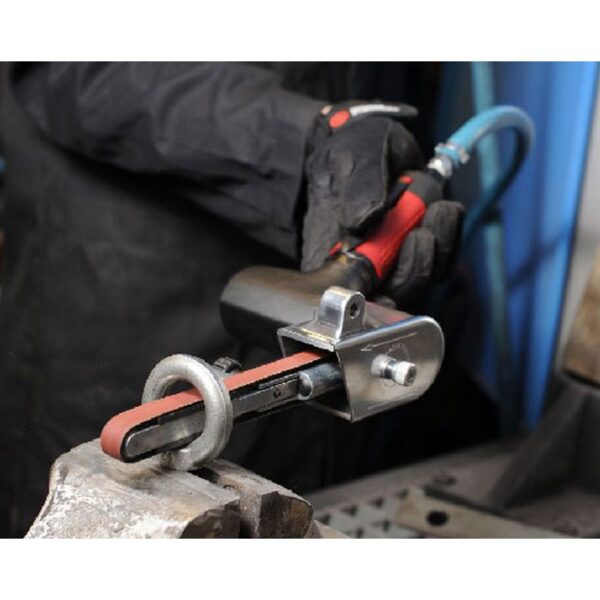

Chicago Pneumatic CP5080-4200H18 Belt Sander

Description

Product Description of the Chicago Pneumatic CP5080-4200H18 Belt Sander

Industrial belt sander
Ergonomic handle and high speed
High durability thanks to simple and robust design
Ideal for versatile sanding applications

Designed for work in tight spots
Sanding head pivots 360° for multi position sanding
Easy change of abrasives and contact arm
18" (457 mm) belt sander
0.5 hp (400 W)

Parts Manuals for the Chicago Pneumatic CP5080-4200H18 Belt Sander

Find the part number for your spare(s) in the parts manual below, and enter it in the search box at the top of the page to add it to your basket.

Parts Breakdown

Parts Breakdown for the Chicago Pneumatic CP5080-4200H18 Belt Sander

Operator Manual

Operator Manual for the Chicago Pneumatic CP5080-4200H18 Belt Sander

CE Certificate

CE Certificate for the Chicago Pneumatic CP5080-4200H18 Belt Sander

Safety Instructions

Safety Instructions for the Chicago Pneumatic CP5080-4200H18 Belt Sander

Vibration & Sound Readings for the Chicago Pneumatic CP5080-4200H18 Belt Sander

Vibration readings for the Chicago Pneumatic CP5080-4200H18 Belt Sander are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. RedBlackTools or Chicago Pneumatic cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

 Vibration LevelUncertaintyVibration Test Method
Current (3 Axis)Under 2.5 m/s²-ISO-28927-3

Noise LevelSound Power
80 db(A)91 db(A)

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Chicago Pneumatic CP5080-4200H18 Belt Sander will be sent to your email automatically.

  • This field is for validation purposes and should be left unchanged.

On-Site Tool Demonstration of the Chicago Pneumatic CP5080-4200H18 Belt Sander

Free On-Site UK Tool Demonstrations

Please complete the form below to arrange a tool demonstration for the Chicago Pneumatic CP5080-4200H18 Belt Sander or any of the Chicago Pneumatic range of tooling. Alternatively please call us on 01273 855119.

Book a Tool Demonstration

Additional information

Max. RPM/SPM

20000

Item Weight

1.28 kg

Length

340mm

Actual Air Consumption

10.3 l/s [22 cfm]

Free Speed Air Consumption

12.1 l/s [26 cfm]

Air Inlet Thread Size

1/4"

Min. Hose Diameter

10 mm [1/4"]

Noise Level

80 db(A)

Sound Power

91 db(A)

Vibration Level (Test Method)

Under 2.5 m/s² (ISO-28927-3)

Average Air Consumption

5.2 l/s [11 cfm]

Power

0.5hp [373 W]

Consumable Size

1/2" x 18" (13x457mm)

Consumable Shape

Belt

Tool Type

Belt Sander

GTIN

015451689643
