Chicago Pneumatic CP7200S Pistol Sander

MRP: £191.96

£129.97 +VAT

Chicago Pneumatic CP7200S Pistol Sander

Description

Product Description of the Chicago Pneumatic CP7200S Pistol Sander

Compact & lightweight
Maximize operator control and ergonomics, less fatigue
Job done faster and easier
Excellent for small area repair

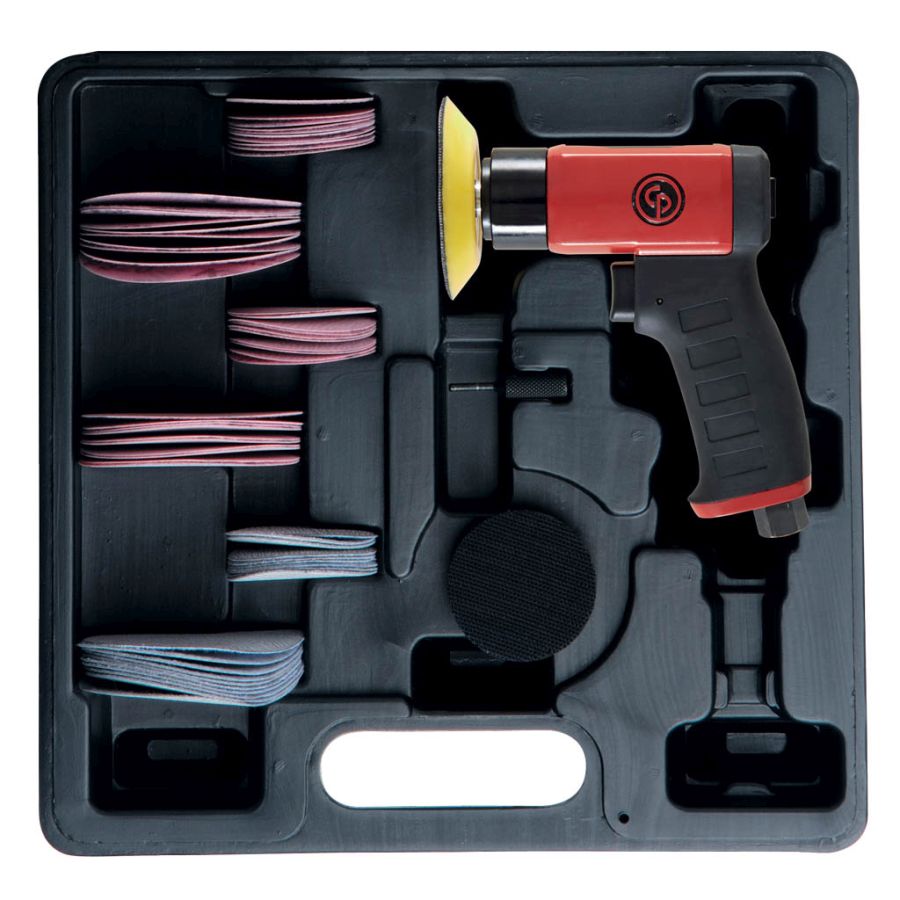

Mini pistol random orbital sander with 2" (50 mm) and 3" (75 mm) H&L pads
Rubber molded pistol grip
Adjustable power regulator
Progressive throttle
Muffled handle exhaust
Includes: (1) 2" (50 mm) and 3" (75 mm) backing pads
(10) 2" (50 mm) 320, 400 and 600 grit sand paper and spindle key packed in heavy-duty carrying case

Parts Manuals for the Chicago Pneumatic CP7200S Pistol Sander

Find the part number for your spare(s) in the parts manual below, and enter it in the search box at the top of the page to add it to your basket.

Parts Breakdown

Parts Breakdown for the Chicago Pneumatic CP7200S Pistol Sander

Operator Manual

Operator Manual for the Chicago Pneumatic CP7200S Pistol Sander

Safety Instructions

Safety Instructions for the Chicago Pneumatic CP7200S Pistol Sander

Vibration & Sound Readings for the Chicago Pneumatic CP7200S Pistol Sander

Vibration readings for the Chicago Pneumatic CP7200S Pistol Sander are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. RedBlackTools or Chicago Pneumatic cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

 Vibration LevelUncertaintyVibration Test Method
Current (3 Axis)5.9 m/s²2 m/s²ISO-28927-3

Noise LevelSound Power
86.2 db(A)97.2 db(A)

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Chicago Pneumatic CP7200S Pistol Sander will be sent to your email automatically.

  • This field is for validation purposes and should be left unchanged.

On-Site Tool Demonstration of the Chicago Pneumatic CP7200S Pistol Sander

Free On-Site UK Tool Demonstrations

Please complete the form below to arrange a tool demonstration for the Chicago Pneumatic CP7200S Pistol Sander or any of the Chicago Pneumatic range of tooling. Alternatively please call us on 01273 855119.

Book a Tool Demonstration

Additional information

Max. RPM/SPM

15000

Item Weight

0.68 kg

Pad Hole Pattern

No Holes

Pad Fixing Type

Velcro/Hook-Face

Consumable Shape

Disc

Height Over Spindle

145mm

Consumable Size

2" (51mm), 3" (76mm)

Spindle Thread

1/4"-20 UNC

Uncertainty (Test Method)

2 m/s² (ISO-28927-3)

Average Air Consumption

5 l/s [10 cfm]

Sound Power

97.2 db(A)

Vibration Level (Test Method)

5.9 m/s² (ISO-28927-3), 7.1 m/s² (ISO-8662-8)

Noise Level

86.2 db(A)

Min. Hose Diameter

10 mm [3/8"]

Air Inlet Thread Size

1/4"

Free Speed Air Consumption

9.9 l/s [21 cfm]

Actual Air Consumption

9.9 l/s [21 cfm]

Orbit Diameter

3/32" (2.5mm)

Tool Type

Pistol Sander

GTIN

015451528164
