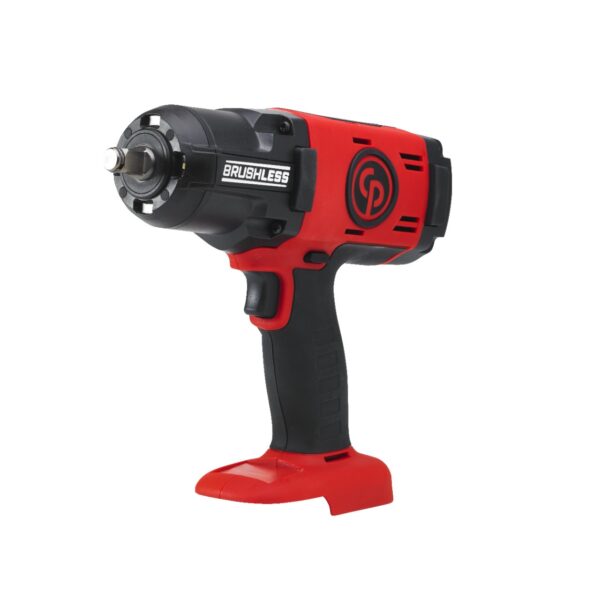

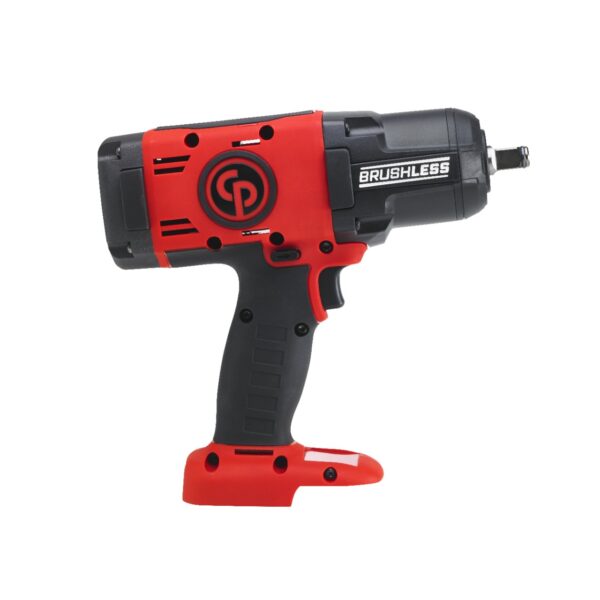

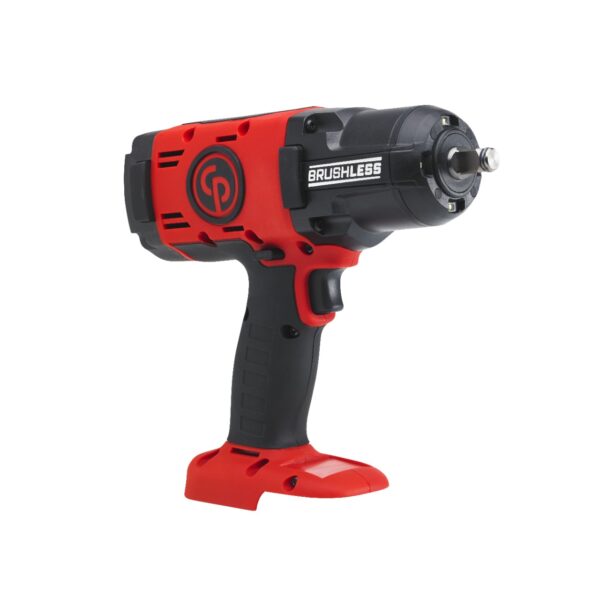

Product Description of the Chicago Pneumatic CP8849 Cordless Impact Wrench Pack W/ 6.0Ah BatteryBenefits
2 shut off positions
High resistance to drop

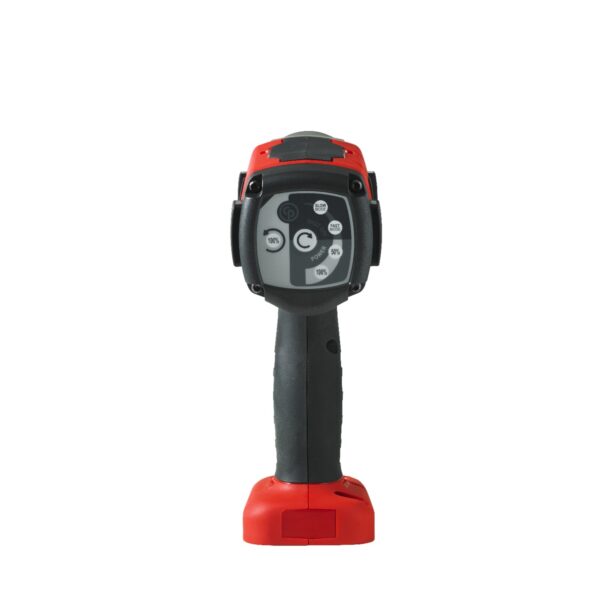

4 settings in forward, to be set up with the touch pad on the back side of the tool
- Slow mode to approach without impacting (hand tightening around 3.7 ft.lbs / 4-5 Nm)
- Fast mode to tighten wheels close to recommended torque without overtightening (around 50 ft.lbs / 70 Nm)
50%: around 425 ft.lbs / 580 N
100% of maximum torque around 850+ ft.lbs / 1150+ Nm
1 setting @ full power in reverse 850+ ft.lbs / 1150+ Nm
5 bumpers all around the tool, 1 in front of the clutch housing

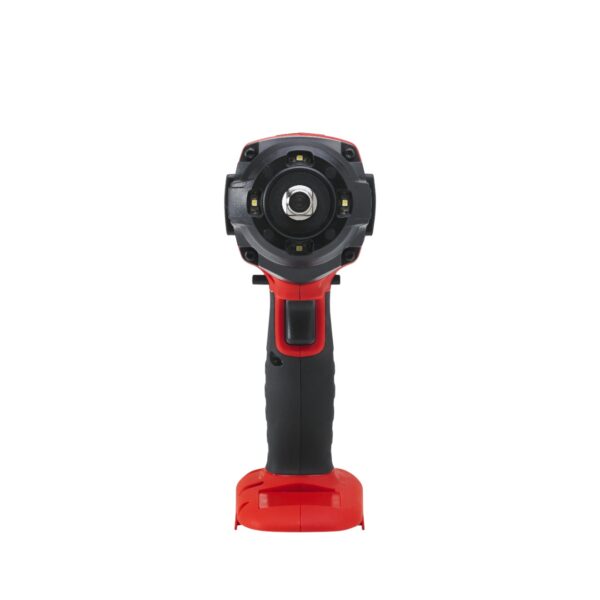

4 Front LED lights for dark spaces
Single-hand Forward and Reverse operation plus Safety locking position
Soft thermoplastic rubber grip
The CP8849 Series is to be used as a « snugging » tool to come close to the car manufacturer’s specified torque rating. The final tightening should be done with a calibrated torque wrench, this way, we ensure the end of overtightening.
Torque results could vary greatly depending on the type of wheel and many other factors.
Parts Manuals for the Chicago Pneumatic CP8849 Cordless Impact Wrench Pack W/ 6.0Ah Battery
Find the part number for your spare(s) in the parts manual below, and enter it in the search box at the top of the page to add it to your basket.
Parts Breakdown for the Chicago Pneumatic CP8848 Cordless Impact Wrench
Operator Manual for the Chicago Pneumatic CP8848 Cordless Impact Wrench
Safety Instructions for the Chicago Pneumatic CP8848 Cordless Impact Wrench
Vibration & Sound Readings for the Chicago Pneumatic CP8849 Cordless Impact Wrench Pack W/ 6.0Ah Battery
Vibration readings for the Chicago Pneumatic CP8849 Cordless Impact Wrench Pack W/ 6.0Ah Battery are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. RedBlackTools or Chicago Pneumatic cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.
|Vibration Level||Uncertainty||Vibration Test Method|
|Current (3 Axis)||16.8 m/s²||1.5 m/s²||ISO-28927-2|
|Noise Level||Sound Power|
|101.5 db(A)||112.5 db(A)|
