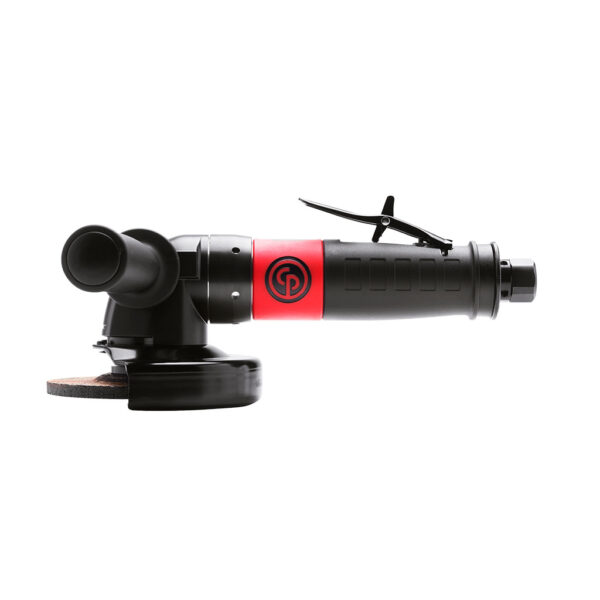

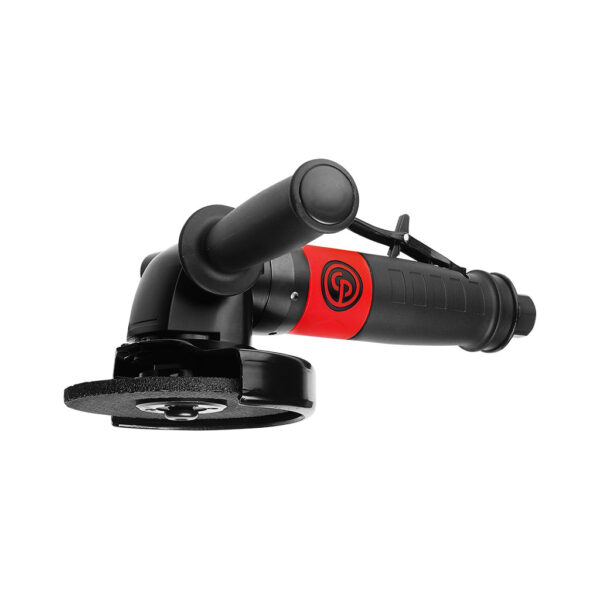

Chicago Pneumatic CP3550-120AA45 4-1/2″ (115mm) Angle Grinder, M14 Thread

MRP: £680.95

£638.25 +VAT

NEW CP3550-120AA45 4-1/2″ (115mm) Angle Grinder, M14 Thread includes a keyless rotating guard for improved ergonomics and easy switching between cutting & grinding; a durable bevel gear to maximise life between maintenance intervals; a spindle lock button to minimise time spent changing discs; a removable handle to enable use on one side or the other; a governed motor for consistent performance under load, and a rotating air inlet to keep the air line out of the way and eliminate the need for a swivel connector.




Main Specifications:



Description

Product Description of the Chicago Pneumatic CP3550-120AA45 4-1/2" (115mm) Angle Grinder, M14 Thread

Benefits
Industrial angle wheel grinder
Industrial grade durability with up to a 1,000 hour maintenance interval
Superior torque for maximal productivity
Superior ergonomics

Features
1.5 hp (1,100 W) governed motor
Durable bevel gear
Spindle lock button
Keyless rotative guard
4.5" (115 mm) wheel capacity
M14 spindle thread
12,000 rpm free speed
Streamlined safety lever

Dimensions 99 cm
Tool Type

Angle Grinder

Length

252mm

Item Weight

1.9 kg

Actual Air Consumption

26 l/s [56 cfm]

Free Speed Air Consumption

17 l/s [36 cfm]

Air Inlet Thread Size

3/8"

Min. Hose Diameter

13 mm [1/2"]

Sound Power

95 db(A)

Vibration Level (Test Method)

7.5 m/s² (ISO-28927-1)

Uncertainty (Test Method)

4.1 m/s² (ISO-28927-1)

Spindle Thread

M14

Consumable Size

4-1/2" (115mm)

Max. RPM/SPM

12000

Power

1.4hp [1050 W]

Height Over Spindle

99mm

On-Site Tool Demonstration of the Chicago Pneumatic CP3550-120AA45 4-1/2" (115mm) Angle Grinder, M14 Thread

Free On-Site UK Tool Demonstrations

Please complete the form below to arrange a tool demonstration for the Chicago Pneumatic CP3550-120AA45 4-1/2" (115mm) Angle Grinder, M14 Thread or any of the Chicago Pneumatic range of tooling. Alternatively please call us on 01273 855119.

Book a Tool Demonstration

Vibration Readings for the Chicago Pneumatic CP3550-120AA45 4-1/2" (115mm) Angle Grinder, M14 Thread

Vibration readings for the Chicago Pneumatic CP3550-120AA45 4-1/2" (115mm) Angle Grinder, M14 Thread are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. RedBlackTools or Chicago Pneumatic cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

  Vibration Level Uncertainty Vibration Test Method
Current (3 Axis) 7.5 m/s² 4.1 m/s² ISO-28927-1

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Chicago Pneumatic CP3550-120AA45 4-1/2" (115mm) Angle Grinder, M14 Thread will be sent to your email automatically.

You can down load the HSE leaflet that explores the jobs which are affected; how to assess and control the risk; what employees need to know; and health surveillance measures. It will help you understand what you need to do to comply with the Control of Vibration at Work Regulations 2005 (The Vibration Regulations 2005).

Health and Safety Executive: Hand-Arm Vibration Guide

Please Note: Vibration and sound levels shown are the result of laboratory testing in conformity with European codes and standards, but are not sufficient for risk evaluation. Values measured in a specific workplace may differ from declared values. Actual exposure values and associated risk will be unique to each workplace and workstation. Potential risk to each individual depends on a variety of factors such as workstation design, surrounding environment, operator proficiency, material being worked and amount of exposure time. The employer is responsible for adhering to any applicable legal requirements regarding workplace health and safety and for evaluation of actual vibration and sound levels based on factors affecting the workplace environment. RedBlackTools or Chicago Pneumatic cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

Sound and Decibel Readings of the Chicago Pneumatic CP3550-120AA45 4-1/2" (115mm) Angle Grinder, M14 Thread

Noise Level Sound Power
84 db(A) 95 db(A)

The Control of Noise at Work Regulations 2005 (Noise Regulations 2005) require employers to prevent or reduce risks to health and safety from exposure to noise at work.

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Chicago Pneumatic CP3550-120AA45 4-1/2" (115mm) Angle Grinder, M14 Thread will be sent to your email automatically.

Similar Tools to the Chicago Pneumatic CP3550-120AA45 4-1/2" (115mm) Angle Grinder, M14 Thread

Parts Manuals for the Chicago Pneumatic CP3550-120AA45 4-1/2" (115mm) Angle Grinder, M14 Thread

Chicago Pneumatic CP3550-120AA45 Angle Grinder Manuals

View the CP3550-120AA45



Find the number for your part and enter it below with your desired quantity. You can add more parts by adding new rows – add all items to your cart in one go by clicking ‘Add to Cart’.

Product QuantityPrice
Total Price:

Parts Breakdown for the Chicago Pneumatic CP3550-120AA45 Angle Grinder

Operator Manual for the Chicago Pneumatic CP3550-120AA45 Angle Grinder

Safety Instructions for the Chicago Pneumatic CP3550-120AA45 Angle Grinder

Posted in CP Tool Manuals | Comments Off on Chicago Pneumatic CP3550-120AA45 Angle Grinder Manuals

Additional information

Dimensions 99 cm
Tool Type

Angle Grinder

Length

252mm

Item Weight

1.9 kg

Actual Air Consumption

26 l/s [56 cfm]

Free Speed Air Consumption

17 l/s [36 cfm]

Air Inlet Thread Size

3/8"

Min. Hose Diameter

13 mm [1/2"]

Sound Power

95 db(A)

Vibration Level (Test Method)

7.5 m/s² (ISO-28927-1)

Uncertainty (Test Method)

4.1 m/s² (ISO-28927-1)

Spindle Thread

M14

Consumable Size

4-1/2" (115mm)

Max. RPM/SPM

12000

Power

1.4hp [1050 W]

Height Over Spindle

99mm
